Y&H 1000W Solar Hybrid Inverter DC12V to AC230V, Off-Grid Pure Sine Wave Inverter with 40A MPPT Solar Charger Max PV 600W DC150V Input,fit for 12V Lead-Acid/Lithium Battery
Product details
| Management number | 216045606 | Release Date | 2026/04/19 | List Price | $64.00 | Model Number | 216045606 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Y&H Pure sine Wave Inverter】This 1000W Pure sine Wave Inverter 12V DC to AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can't Output 110V AC), built in 40A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 12V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
- 【TECHNICAL SPECIFICATIONS】1kw Hybrid Solar Inverter Max.PV Input Power: 600W, Voltage range: 20-150Vdc, Max. PV Input VOC: 150V DC, Starting voltage >30V;Recommended PV cable size: 12AWG, Max.charge current: 40A. Nominal Input Frequency: 50/60Hz; Output Power: 1000W, surge Capacity:2000W.
- 【MULTIPLE CHARGING MODES】Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.

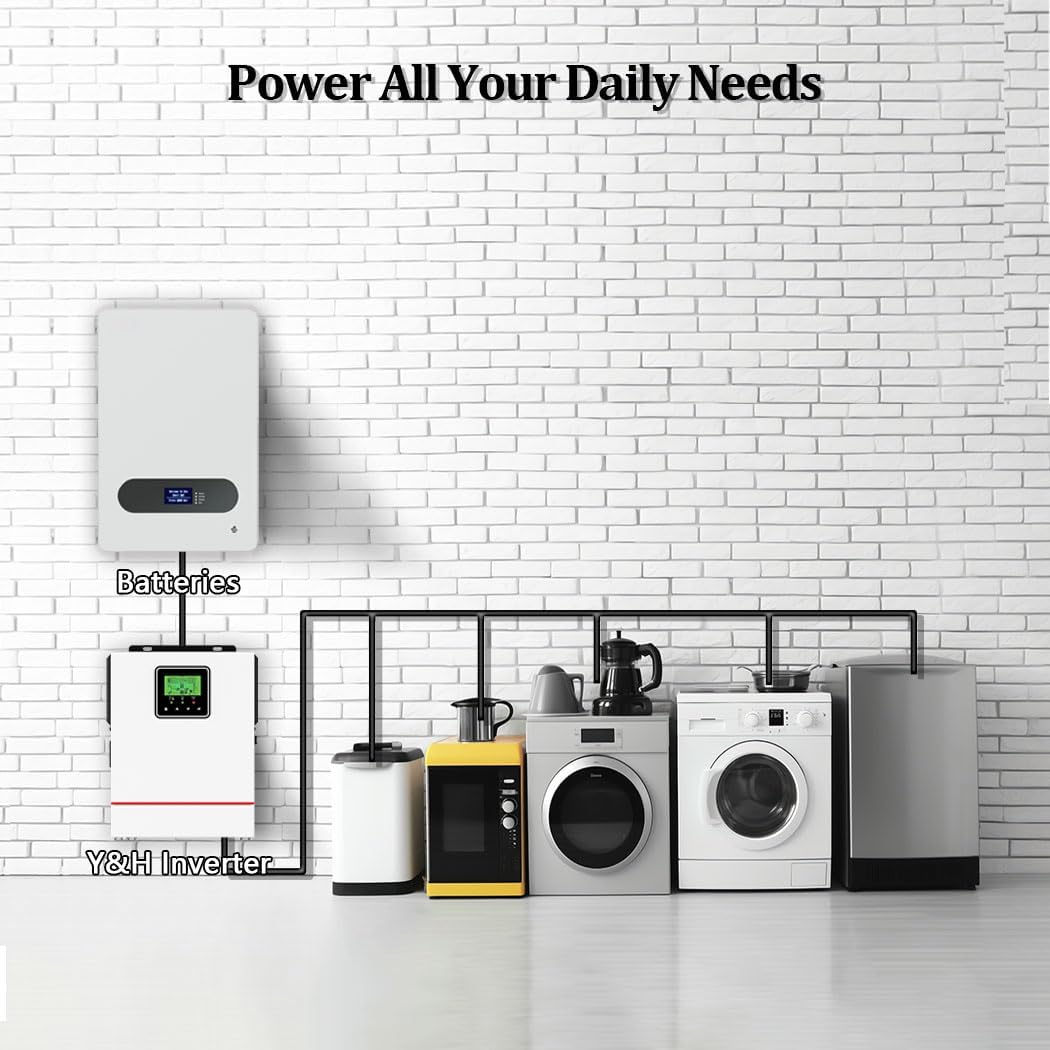

- 【WIDE RANGE OF USES】MPPT Inverter Charger Pure sine Wave 1000W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.（Be careful not to install it near the bedroom, the fan will make a sound when the inverter is running.Avoid affecting your rest (expect 50-70 db)
- 【W/LCD & LED DISPLAY】LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting.
| UPC | 716963362139 |
|---|---|
| Brand | Y&H |
| Color | White |
| Wattage | 1000 watts |
| Frequency | 60 Hz |
| Model Name | NMS-1000-12 |
| Display Type | LCD |
| Manufacturer | Y&H |
| Model Number | NMS-1000-12 |
| Output Power | 1000 Watts |
| Power Source | Solar Powered |
| BuiltIn Media | [Partial: 40A MPPT Charge Controller] |
| Input Voltage | 12 Volts |
| Output Voltage | 230 Volts |
| Antenna Location | Vehicle |
| Battery Capacity | 12 Amp Hours |
| Number of Outlets | 1 |
| Warranty Description | 2 |
| Peak Output Power Watts | 1000 |
| Energy Specifications Met | CE |
| Inverter Capacity VoltAmp | 1000 |
| Electrical Output Waveform | Pure Sine Wave |
