Walther Electric 312409 Pin and Sleeve Female Connector 20A 4P 230/250VAC 9Hr IP44 Splashproof UL Listed - Prevent Accidental Disconnect Under Load - Industrial Grade IEC 420C9
$146.49
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by raltecsolar.com.br
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$146.49
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by raltecsolar.com.br
Free 30-day returns Details
Product details
| Management number | 215629517 | Release Date | 2026/04/12 | List Price | $58.60 | Model Number | 215629517 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- WORLDWIDE INTERCHANGEABILITY - Walther's pin & sleeve devices are built to IEC 309-1 and 309-2 specifications and are interchangeable with other manufacturers who conform to the IEC standards and color-coding system
- HIGH IMPACT THERMOPLASTIC HOUSING – Heavy-duty industrial insulated housings are made from high impact nylon material which is resistant to corrosion and abrasions. Non-conductive material is UV stabilized

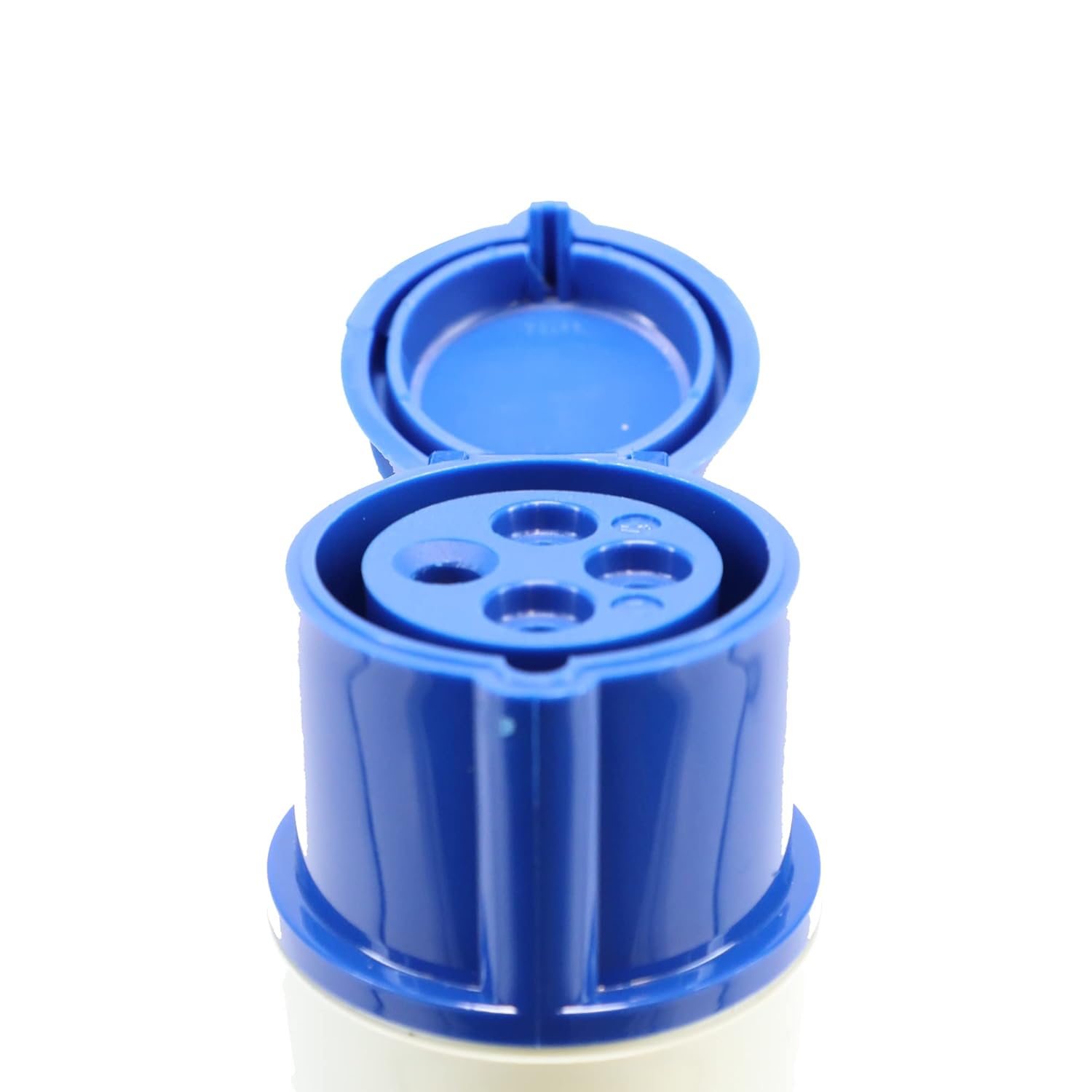

- SPRING LOADED GASKETED COVER – Snaps into place when the plug is removed. Protects against encounter with live contacts while keeping out dirt, dust and moisture
- IP44 SPLASHPROOF - Device is sprayed with water for 10 minutes and immediately afterwards subjected to splashing water in all directions (360°)
- TRUMPET/BELL GLAND - A compression type cable gland with onion ring and neoprene bushing which serves as a secondary method to prevent cable from being twisted or accidently pulled out of the housing. Provides an airtight seal to keep out dust, dirt and moisture
| Color | Blue |
|---|---|
| Voltage | 250 Volts (AC) |
| Amperage | 20 Amps |
| Brand Name | Walther |
| Item Weight | 0.45 Pounds |
| Manufacturer | Walther-Werke |
| Material Type | Nylon |
| Connector Type | Plug in |
| Specification Met | UL |
