Lcr Meter LCR-ST2 Digital Clamp Meter For LCR ESR Measurement With Kelvin Clip, HD Display, Auto Recognition And Multi-Frequency For SMD Testing(LCR-ST2 high)

Features:The LCR-ST2 is a versatile portable test instrument that accurately measures resistance, capacitance, inductance, and diodes, and can measure voltages up to 30V. Utilizing advanced measurement technology, the LCR-ST2 ensures high accuracy and stability.It features a 1.47-inch high-definition color display and a magnetic mounting design, enhancing ease of use and portability. A built-in 300mAh lithium battery provides extended battery life. The instrument supports five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.Its unique clamp-style design is particularly suitable for delicate work in confined spaces, enabling for rapid testing of electronic components. Furthermore, the LCR-ST2 offers a scanning function, capable of quickly scanning component parameters across the entire frequency range (100 Hz to 100 kHz) and acquiring multi-frequency data with a single press, enabling accurate component characteristic analysis.The intelligent sorting function automatically classifies and components, significantly improving batch testing efficiency. The dual-mode simultaneous display function allows two measurement modes to be displayed on the same screen, facilitating direct comparison and making result analysis more intuitive. The LCR-ST2 is lightweight and portable, making it an indispensable and efficient tool for field engineers and laboratory applications.Specifications:Part Name: LCR-ST2 2-in-1 Digital LCR ESR Clamp MeterMaterial: ABSModel: LCR-ST2Screen: 1.47-inch HD Color ScreenBattery: 300mAh Lithium BatteryBattery Life: Approx. 3 hoursCharging Interface: Type Csize: 31 × 170.7 × 20.3 mmOperating Temperature: 0℃–50℃ (≤75%RH)Storage Temperature: -20℃ to 60℃ (≤75%RH)Auto Power Off: Never / 5 minutes / 15 minutes / 30 minutesLanguage: English / ChineseCalibration: Open Circuit / Short Circuit / Multi-Resistor CalibrationAdjustable Screen Brightness and VolumeAuto Recognition (R/C/L)Capacitance Range: 1pF–22mFInductance Range: 1μH–10HResistance Range: 10mΩ-10MΩDiode Forward Voltage Detection: ≤0.7 VVoltage Range: ±30VFrequency Scan (100 Hz-100 kHz)Package Contents:LCR-ST2 Component 11. Main Unit LCR-ST2 + Clip-on Fixture2. Storage Bag3. Bent Tip4. Cutting Board5. Data CableLCR-ST2 Component 21. Main Unit LCR-ST2 + Clip-on Fixture2. Storage Bag3. Bent Tip4. Cutting Board5. Kelvin Test Segment6. Data Cable

• Advanced LCR ESR Measurement Tool: This 2-in-1 digital bridge tweezers combines precision testing capabilities with innovative clamp-style design, measuring resistance (10mΩ-10MΩ), capacitance (1pF-22mF), inductance (1μH-10H), diodes (≤0.7V forward voltage), and voltage (±30V) across five selectable frequencies (100Hz/120Hz/1kHz/10kHz/100kHz) for comprehensive electronic component analysis in confined workspaces
• Intelligent Scanning & Sorting Functions: Unique frequency sweep capability automatically scans component parameters across entire 100Hz-100kHz spectrum with single button press, acquiring multi-frequency data for accurate characteristic analysis; intelligent classification system automatically sorts tested components by type and value, dramatically improving batch testing workflow efficiency for electronics repair and quality control applications
• Dual-Mode Simultaneous Display: Features 1.47-inch high-definition color screen with dual measurement mode visualization, allowing direct on-screen comparison between different test parameters or frequencies; adjustable brightness and volume settings optimize visibility under varying lighting conditions; magnetic mounting design enables hands-free operation when working for circuit or component sorting tasks

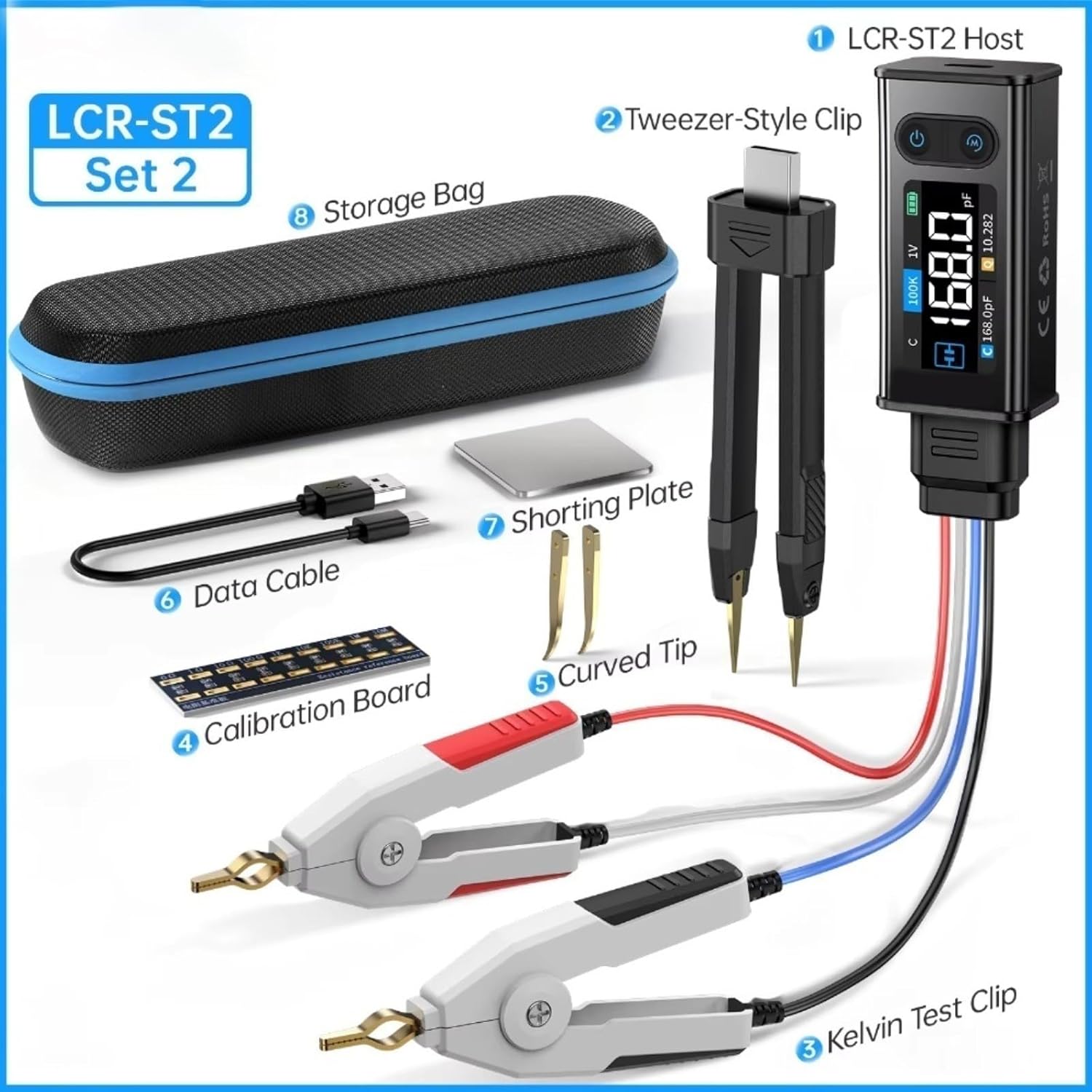

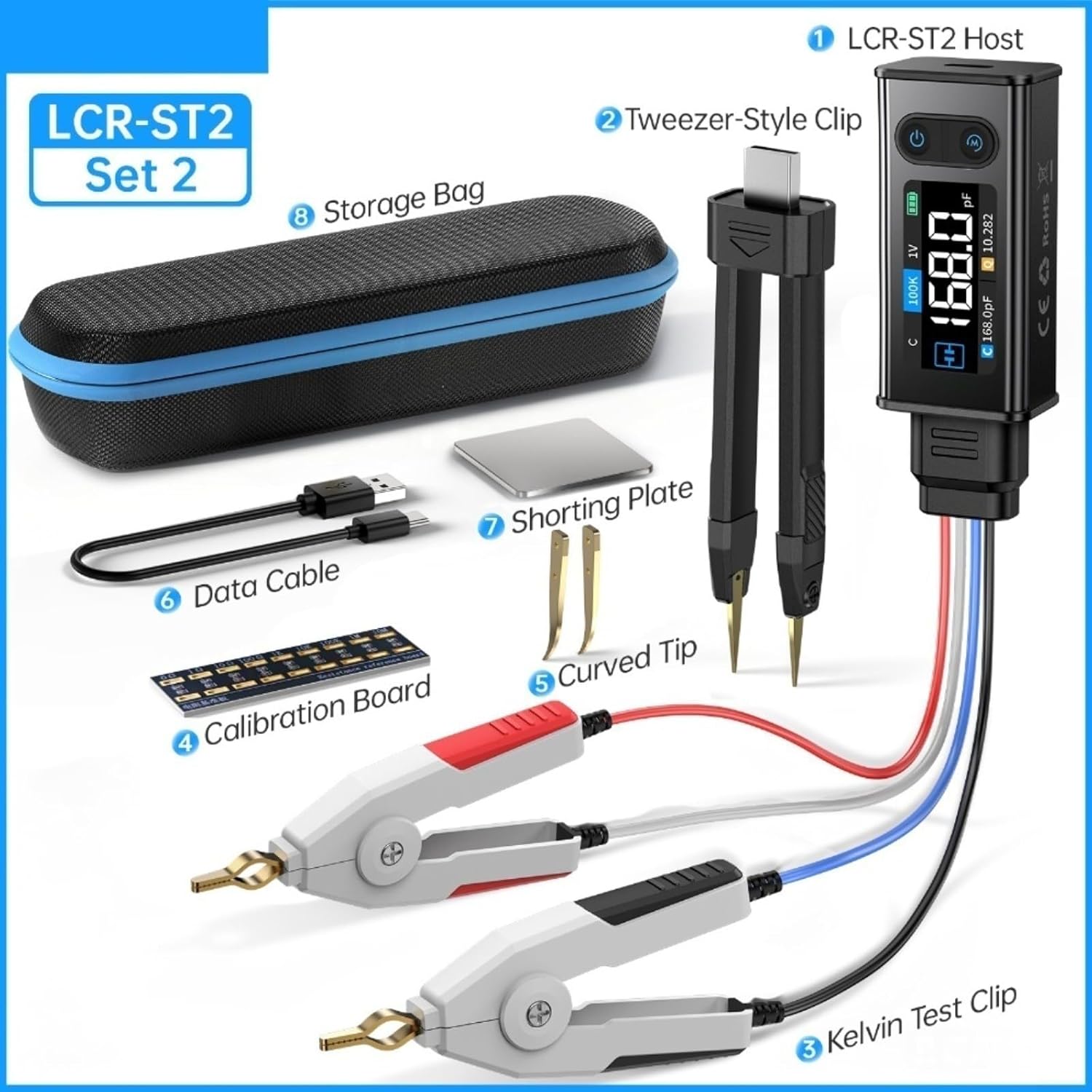

• Professional Kelvin Clip Configuration: Component 2 package includes Kelvin test segments for four-wire measurement technique, eliminating resistance interference for ultra-precise readings of low-resistance components; clip-on fixture with bent tip attachment facilitates testing of surface-mounted devices (For SMD) and delicate components without risk of damage or measurement error from probe pressure variations
• Portable Design: Compact 31×170.7×20.3mm form factor with built-in 300mAh lithium battery provides approximately 3 hours continuous operation; Type-C charging interface for convenient power replenishment; operates reliably across 0℃-50℃ temperature range; selectable auto power-off intervals (5/15/30 minutes or never); includes carrying pouch, data cable, and cutting board for complete mobile testing solution
